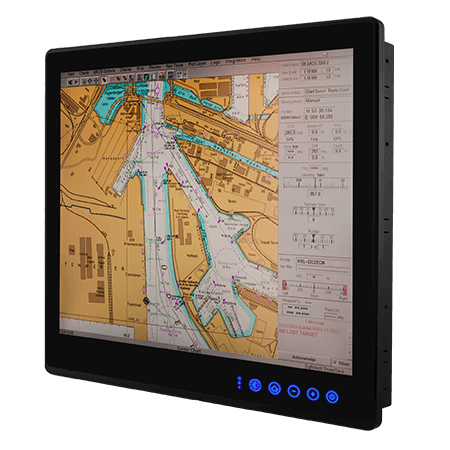

Winmate Marine Panel PC – R15IH3S-MRA3FP
15″ Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel Computer
MAIN FEATURES
- 15”1024 x 768 PCAP touch screen, Flat PCAP ECDIS Marine Panel PC
- 5th Gen Intel® Core™ i5 -5350U @ 2.20 GHz
- Edge-to-edge narrow bezel design and fanless cooling system
- Capacitive touch keys for quick function access and screen control (supports ECDIS DAY, TWILIGHT DAY and NIGHT mode switching)
- Meet the requirements of Industrial marine standards including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10
Request
Datasheet
Certified Reliable Calculation for Marine Applications
Winmate ECDIS Marine Panel PCs are manufactured and tested in accordance with DNVGL-CG-0339 Standard, IEC60945 and IACS-E10 to meet the international regulatory requirements of the maritime industry. Winmate conducts in-house reliability testing to ensure optimum performance in harsh marine environments.
ECDIS Reliability for Representing True Sea Colours
With the Winmate ECDIS, Marine Panel PC users can set day, twilight, or night mode via the capacitive touch key to adapt to any lighting situation. Winmate factory-calibrates color settings for accurate color reproduction according to the IEC 61174 ECDIS Standard.
Stylish Design for Modern Bridge Workstations
Easy to maintain and clean. The glass-covered lens provides excellent scratch protection and reduces the space for potential dust and liquid accumulation. The truly flat surface gives the device a slim and elegant appearance. Its sleek, edge-to-edge design, robust construction, powerful performance, and flexible mounting options surpass standard industrial and marine computers.
Best Touch Experience
Enhance the customer experience with PCAP touch, which supports multi-touch and is easily controlled with fingers. Enjoy every touch and comfort when using the ECDIS Marine Panel PC, and experience ultimate durability in the most demanding applications such as bridge navigation and control.
Environmental Connection
Onboard connectivity consists of Ethernet LAN, two USB2.0, one USB3.0, HDMI, optional 4-Channel Isolated Digital Input and Output, optional four COM ports RS232/422/485 - switchable via software - meets NMEA 0183 National Marine Electronics Association physical layer standard.
Dimension
15.0 inches
Touch / Glass
Projected Capacitive Multi-Touch Screen (AR Coating) AG film (Optional) AR Glass (Optional)
Resolution
1024x768
Panel Brightness
500.0 nit
Contrast Ratio
2500:1
Angles of View
88,88,88,88
Active Area
304.1x228.1 mm
Processor
Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) Intel Core i5-5250U Processor 1.6GHz (up to 2.7GHz) (Optional) Intel Core i5-5300U Processor 2.3GHz (up to 2.9GHz) (Optional) Intel Core i5-5200U Processor 2.2GHz (up to 2.7GHz) (Optional)
Memory
1 x SO-DIMM, DDR3L 1600MHz, 4GB 8GB (Optional)
Storage
1 x mSATA SSD 128 GB Up to 512 GB mSATA SSD (Optional)
Ethernet controller
Intel® Ethernet Controller I211-AT+ Intel® Ethernet Link I218-LM
Operating System
Windows 10 IoT Enterprise (Optional)
Buzzer
75dB~80dB, 2300Hz, 1m
Working Humidity
5% to 95%
Working Temperature
-15~55°C
Shock
15G, 11ms duration
Vibration
0.7 g @DNVGL CG-0339 (Class A)
IP rating
IP66 (Front)
Certification
CE, FCC DNVGL-CG-0339, IEC60945 4th, IACS E10
USB Port
2 USB3.0
Serial Port
1 x RS232(Default)/422/485
AND
2 RJ45
Video
1 x HDMI (Optional)
Preliminary Control
Power Brightness + Brightness - Menu Function Key (Default setting: ECDIS Mode)
Indicator
Day Mode Twilight Mode Night Mode
DIDO
8 Channel Isolated Digital Input/Output (Optional)
NMEA
4 x NMEA 0183 Ports (Optional)
Dimension
363x312x67.5 mm
To cut
338x288mm
Weight
5.8 kilos
Assembly
VESA mount Panel mount (Optional)
Casing
Anodized Aluminum Frame
Cooling System
Fanless Design
Accessory
Driver CD and User Manual 12V AC to DC Adapter (with 3-pin Terminal Block) Power Cable M4 x 12 Black Screw Bolts
Optional Accessories
Four 5-Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)
Power Rating
24V DC-in Isolated (Approved with Certificate) 9~36V DC Input Acceptable
Consumption
55W (Typical)
