Axiomtek Train Console – GOT715S

EN 50155 Compliant 15″ XGA TFT LCD Railway Fan Touch Screen Panel PC Intel Atom® Processor E3845 1.91 GHz (-25°C to +70°C)

15″ XGA TFT LCD with 800 nits high brightness, sunlight readable
Intel Atom® processor E3845 1.91 GHz with fanless
Fully lockable connector design
Automatic dimming for different environments
Wide temperature range from -25°C to +70°C
Wide power input range of 24 to 110 VDC typical and EN 50155 Class S3 20ms power outage protection compliant
EN 50155 design compliance

Datasheet

15" XGA TFT LCD with 800 nits high brightness, sunlight readable
Intel Atom® processor E3845 1.91 GHz with fanless
Fully lockable connector design
Automatic dimming for different environments
Wide temperature range from -25°C to +70°C
Wide power input range of 24 to 110 VDC typical and EN 50155 Class S3 20ms power outage protection compliant
EN 50155 design compliance

LCD Panel	15" TFT LCD 800 nit 1024 x 768 pixels
Processor	Intel® Atom® processor E3845 1.91 GHz (Bay Trail)
Chipset	SoC integrated
System Memory	DDR3L 4GB onboard
BIOGRAPHY	WHICH

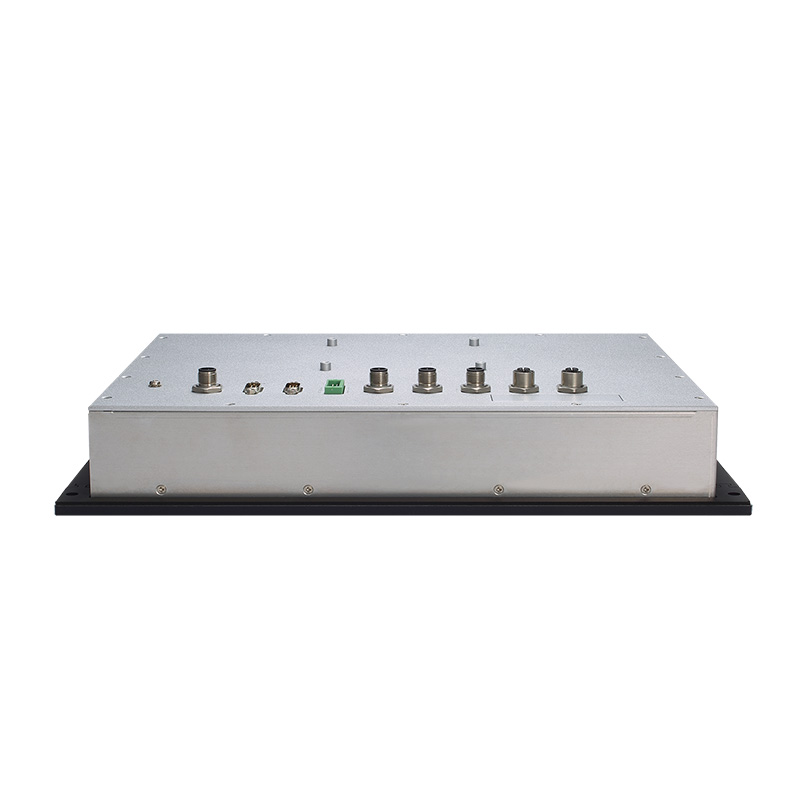

WITH	2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB	1 x M12 A coded USB 2.0 (2-port signal)
Ethernet	2 x Isolated M12 X-coded GbE (insulation level 1.5 kV)
View	None
Sound	1 x DB15 audio input, microphone input, speaker output or line output
CANbus	1 x Isolated DB9 CANbus (isolation level 1.5kV)
Storage	16GB internal flash
PIECE	1 x Isolated terminal block DIO (6 inputs/2 outputs, isolation level 1.5 kV)
Expansion	2 x PCI Express Mini Card slots (slot2 is for mSATA use only)
Others	Automatic dimming for different environments
Touch screen	5-wire resistive touchscreen
Front Frame	IP65 rated aluminum front bezel and IP40 rated rear protection
Power supply	1 x M12 A-coded DC input Typical 24 to 110 VDC EN 50155 S3 20ms power failure protection
Power Consumption	24-110VDC @ 1.28-0.26A
Watchman Timer	255 levels, 1 to 255 seconds.
Working Temperature	-25°C to +70°C (-13°F to +158°F)
Relative humidity	10% - 95% @ +40°C, non-condensing
Vibration	None
Dimensions (W x D x H)	400 x 61.5 x 300mm (15.75" x 2.42" x 11.81")
Weight (net/gross)	4.03 kg (8.89 lb) / 6.43 kg (14.18 lb)
Certificates	CE/FCC Class A EN 50155 compatible
EOS	Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Assembly	Wall mounted VESA mount

History	Definition	Version	Download the file
2022/05/31	Win10_Driver_USB to UART	V1.0	2,254KB
2022/05/31	Win10_Driver_Sideband Fabric Device	V1.0	965.6KB
2022/05/31	Win10_Driver_Penmount Touch	V1.0	5,612.8KB
2022/05/31	Win10_Driver_LAN	V1.0	121,127.1KB
2022/05/31	Win10_Driver_Trusted Execution Engine	V1.0	34,963.9KB
2022/05/31	Win10_Driver_Graphics	V1.0	195,806.1KB
2022/05/31	Win10_Driver_HD Audio	V1.0	220,222.7KB
2022/05/31	Win10_Driver_Chipset	V1.0	2,722.2KB
2022/05/31	Win7_Driver_USB to UART	V1.0	2,058KB
2022/05/31	Win7_Driver_Penmount Touch	V1.0	5,611.6KB
2022/05/31	Win7_Driver_IO Drivers	V1.0	7.878KB
2022/05/31	Win7_Driver_LAN	V1.0	50,488.7KB
2022/05/31	Win7_Driver_HD Audio	V1.0	223,826.9KB
2022/05/31	Win7_Driver_Graphics	V1.0	192,495.2KB
2022/05/31	Win7_Driver_Chipset	V1.0	2,615.3KB

Software

History	Definition	Version	Download the file
2022/05/31	Library v1.2.1		243.8 KB

History	Definition	Version	Download the file
2022/05/31	User Manual VA1	VA1	1,741.5KB

History	Definition	Download the file
2023/01/05	CE Declaration of Conformity	60.2 KB
2023/01/05	UKCA Declaration of Conformity	66.3KB
2022/12/30	CE LVD Verification	207.4KB
2022/12/30	FCC Verification	148.5 KB
2022/12/30	CE EMC Verification	149.3KB
