Nexcom Vehicle Computer-ATOM – VTC 1910-S

Intel Atom® E3815 Telematics IoT Gateway Super Slim and Ruggedized Design

Main Feature

  • Super slim and durable design
  • Intel Atom® processor Bay Trail E3815 (1.46 GHz)
  • 1 x CAN 2.0B module built-in, optional SAE J1939/J1708 module
  • Intelligent power management with software control and ignition on/off delay with low voltage protection
  • Internal U-blox M8N GPS
  • Dual SIM cards for WWAN modules
  • 9~36V wide range DC input
  • Wide operating temperature -40°C ~ 70°C
  • Certified with CE/FCC/E13 mark

Request Datasheet

The VTC 1910-S, a super-slim, rugged, and entry-level vehicle computer with an Intel Atom®  processor E3815 (1.46GHz), is designed for harsh in-vehicle environments. It meets the stringent MIL-STD-810G military standard in a robust, fanless, and compact mechanism. Its super-slim design makes it particularly suitable for vehicles with limited space to accommodate the computer system, yet doesn't compromise on its features.

The VTC 1910-S features onboard CAN 2.0B and an optional OBD interface (SAE J1939/J1708) for vehicle diagnostics and driver behavior management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. The VTC 1910-S features WLAN and WWAN wireless data and audio connectivity (co-located with VIOB-DA-01). With 2 x external SIM sockets, which can support a better connection quality with software. The VTC 1910-S maintains the flexibility to meet different demands for telematics applications such as IoT Gateway infotainment, fleet management and distribution system.

Processor Intel Atom® processor Bay Trail E3815, 1.46GHz
Memory 1 x 204-pin DDR3L SO-DIMM socket supports 1066MHz/ 1333MHz, up to 8GB. Default 4GB
Storage 1 x mSATA 1 x SATA DOM
Expansion 1 x Full-size mini-PCIe socket (USB 2.0) 1 x Full-size mini-PCIe socket (mSATA + PCIe)
Function 1 x u-blox NEO-M8N on board (Support GPS/Glonass/QZSS/Galileo/BeiDou) Built-in G-sensor TPM2.0

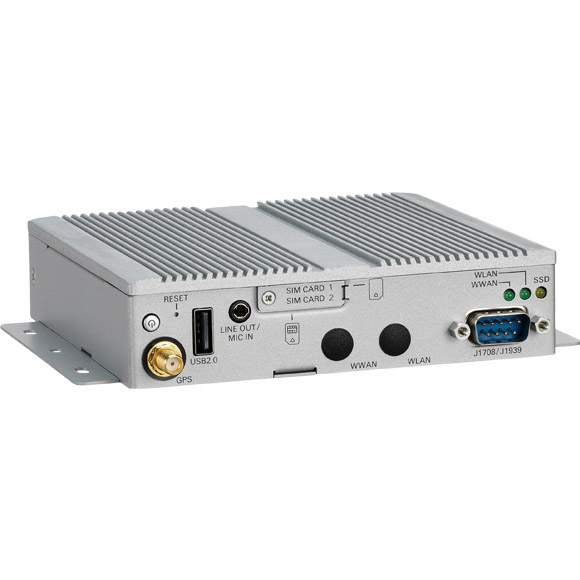

I/O Interface-Front 1 x Power button with LED 3 x LEDs for WWAN, WLAN, SSD 1 x Reset button 2 x SIM socket (Micro Type) with cover 1 x DB9 connector for optional SAE J1939 and J1708 modules 1 x Line Out/ MIC In 1 x Type A USB 2.0-compliant host, supports system boot 3 x antenna holes for GPS/WWAN/WLAN
I/O Interface-Rear 1 x Phoenix connector for Power/GND/Ignition input 1 x Type-A USB 3.0-compliant host, supports system boot 1 x RJ45 10/100/1000 Fast Ethernet with LED 1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX), 1 x CAN 2.0B, 3 x DI, 3 x DO
Operating System Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (on request)
Environment Temperature:
Operating temperatures: -40°C to 70°C
Storage temperatures: -45°C to 85°C
Damp Heat Test per EN60068-2-30
Humidity:
IEC60068-2-3, Damp Heat Steady State Test, 40C, 95%, 48 Hours
Vibration:
IEC 60068-2-64, 2G
Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24
Shock:
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers = 40g
Collision hazard: Procedure V, ground equipment = 75g
Dimensions 130 mm (W) x 120 mm (D) x 32 mm (H) (5.12” x 4.72” x 1.26”) Weight: 0.6 kg (1.3 lbs)
Certificates CE approval FCC Class B E13 mark
Power Management Software selectable startup and shutdown voltage for low power protection. Setting 8-level power on/off delay time by software . Status of ignition and low voltage can be detected by software. Support S3/S4 suspend mode.
Certification
Date Description Version OS Download
2019-05-16 CE Windows 0.23MB
2019-05-16 Emark Windows 0.22MB
2019-05-16 FCC Windows 0.19MB
Driver
Date Description Version OS Download
2017-05-15 Chipest Windows 7/8/x/10 2.6MB
2017-05-15 Ethernet Win7/8 (32/64-bit) 52.72MB
2017-05-15 Graphics Windows 7/8/10 191.8MB
2017-05-15 Realtek Vista/Win7/8/10 357.84MB
2018-01-31 SDK V1.1 Windows 2.23MB
2018-01-31 SDK - CAN V1.0 Windows 2.27MB
2018-01-31 SDK - Gsensor V1.0 Windows 2.29MB
2017-05-15 USB 3.0 Windows 7 5.23MB
2017-05-15 WLAN Module - QCOM - LR802URN2-01 Windows 7 53.8MB
2017-05-15 WLAN Module - QCOM - Q802XRN6 Windows 7/10 39.92MB
2017-05-15 WLAN Module - QCOM - ZQ802XRACB Windows 7/8 217.62MB
2017-05-15 WWAN Module - Sierra EM7430 & 7455 Windows 7/8/10 58.39MB
2017-05-15 WWAN Module - Sierra MC7304 Windows 10 59.47MB
2017-05-15 WWAN Module - Sierra MC7304 Windows 45.85MB
2017-05-15 WWAN Module - SIM5360E Windows 7 0.28MB
2017-05-15 WWAN Module - Telit HE910 & LE910 Windows 7/10 11.93MB
2017-05-15 WWAN Module - VIOB - WWAN - HDA0 Windows 0.57MB
Manual (Please Contact  Sales )
Date Description Version OS Download
2017-12-05 User Manual
(Datasheet Only)
0.54MB
