Nexcom Train Computer – nROK 6222
Fanless 4-CH PoE Railway Computer with Intel Atom® E3950
Main Feature
- Intel Atom® processor quad-core E3950, 1.6GHz
- 4 x PoE (802.3af/at, max. 60W)
- Internal u-blox-M8N GPS
- Three video outputs, one VGA and two HDMI
- EN 50155, class OT4 conformity
- 3 x mini-PCIe socket expansion
- Dual external storage (15mm disc compatible)
- 1 x USB DOM for running the operating system
- 1 x SD card for exporting and backing up data
- Support for optional power isolation kit
Request
Datasheet
Based on Intel Atom® quad-core processor E3950 (1.6GHz), the nROK 6222 complies with the particularly stringent EN50155 standard in a robust, fanless and compact mechanism. The nROK 6222 provides full communication capability between the train and the computer via the built-in CAN BUS 2.0B interface. Equipped with intelligent power management, the nROK 6222 can be woken up by ignition, RTC timer or remote SMS message. The nROK 6222 supports 4 x 802.3at/3af (Max. 60W) PoE ports to connect to IP cameras. The design of 2.5" removable SSD and SD memory card helps to access the storage easily. The nROK 6222 maintains the flexibility to meet the demand for video surveillance in train application. What’s more, the nROK 6222 is protected against sudden power surges through a pluggable VTK6222-PK power isolation kit.
| Processor | Intel Atom® processor quad-core E3950, 1.6GHz, 12W, 4 cores |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket supports 1866MHz, up to 8GB. default 4GB |
| Video Output | Chipset Intel® HD graphics 505 2 x HDMI 1.4b up to 4096 x 2160 @30Hz 1 x VGA up to 1920 x 1200 @60Hz |
| Storage | 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive) 1 x SD memory card 3.0 (externally accessible) 1 x USB EDC for USB DOM |
| Expansion | 1 x Full-size mini-PCIe socket (USB 2.0) for LTE module, BOM optional M.2 3042 Key B socket (USB 2.0, USB 3.0), 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 2.0) for LTE/5G NR module with 2 x external SIM , 1 x Half-size mini-PCIe socket (USB 2.0, PCIe 2.0) |
| GNSS and Onboard Sensor | 1 x Default U-blox NEO-M8N GNSS G Sensor (3-axis, 10-bit resolution) for GPS/Glonass/QZSS/Galileo/Beidou |
| Power over LAN and Ethernet | 4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max 60W 1-Port LAN, 10/100/1000 Mbps I210-IT GbE |
| Security | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional) |

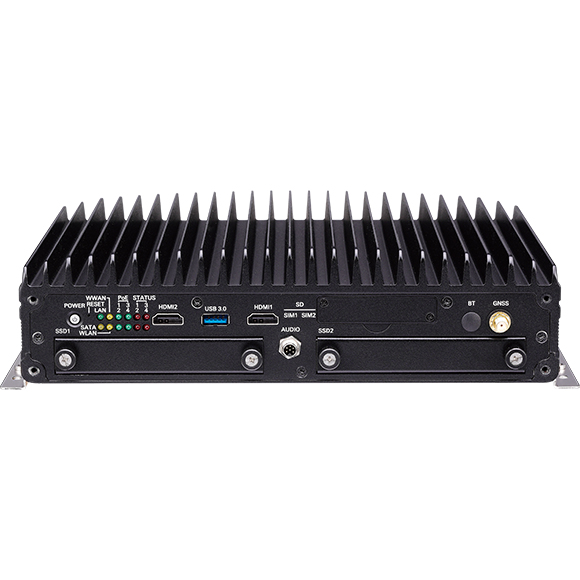

| I/O Interface-Front | 12 x LED indicators (including 3 x programmable LEDs) 2 x externally accessible SIM card slots with covers 2 x 2.5" removable SSD trays 1 x externally accessible SD card slots with covers 1 x reset button 1 x power button 1 x USB 3.0 type A (5V/0.9A) 2 x HDMI 1.4b 1 x M8 (6-pin) 2 x SMA antennas for 1 x Microphone in (mono), 1 x Line out (Stereo) |
| I/O Interface-Rear | 1 x M12 (5-pin) DC jack, spark-ignition - 24/36 VDC (9~48V), non-isolated 1 x M12 X-coded LAN port, 10/100/1000 Mbps 4 x M12 X-coded PoE 802.3af/at (Max. 60W) 1 x VGA 1 x M12 with two USB 2.0 1 x DB9 full RS232 (isolation) 3 x SMA antenna 1 x DB15 (DIO) - 4 x DI isolated - 4 x DO isolated - Vin, GND for GPIO 1 x DB15 (MULTI PORT) - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B |
| Power Management and Software Support | Power input 24/36 VDC non-isolated Software selectable startup and shutdown voltage for low power protection Software 8-stage power on/off delay time adjustment Supports S3/S4 suspend mode 10~255 seconds WDT support, software setup SDK (Windows/Linux) including utility and sample code |
| Operating System | Windows 10/Linux |
| Dimensions | 260mm (W) x 196mm (D) x 66.5mm (H) |
| Weight | 3.4 kg |
| Environment | Operating temperatures: - EN 50155, class OT4 (-40~70°C) with airflow at 85°C (industrial SSD) for 10 minutes Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (operating, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Standards/Certificates | BU FCC Class A EN 50155:2017 - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes - Voltage supply interruptions class S1 - Supply change classes C1, C2 - EMC EN 50121-3-2: 2016 - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30 - Shock and vibration IEC 61373 Class B - Protective coating class PC1 (PC2, on request) EN 45545-2:2013+A1:2015 (PCB) |
| Certification | ||||
|---|---|---|---|---|
| History | Definition | Version | YOU | Download |
| 2020-09-10 | THIS | Windows | 0.03 MB | |
| 2020-09-10 | EN50155 | Windows | 0.03 MB | |
| 2020-09-10 | FCC | Windows | 0.03 MB | |
| Driver | ||||
|---|---|---|---|---|
| History | Definition | Version | YOU | Download |
| 2020-08-21 | Sound | Windows | 217.03MB | |
| 2020-08-21 | Chipset | Windows | 2.57MB | |
| 2020-08-21 | Graphics | Windows | 350.08MB | |
| 2020-08-21 | AND | Windows | 132.42 MB | |
| 2020-08-21 | SDK | Windows | 1.42 MB | |
| 2020-08-21 | Serial I/O | Windows | 2.74MB | |
| 2020-08-21 | CHE | Windows | 79.32 MB | |
| Manual (Please Contact Sales Department ) | ||||
|---|---|---|---|---|
| History | Definition | Version | YOU | Download |
| 2020-08-21 | User Manual | Windows | 0.61 MB | |
