Nexcom Vehicle Computer-ATOM – VTC 1920

Intel Atom® x7211RE Telematics IoT Gateway Slim and Rugged Design

Main Feature

Super slim and durable design
Intel Atom® processor x7211RE (1.0 GHz)
Internal 1 x CAN FD, 1 x CAN 2.0B
Intelligent power management with software control and ignition on/off delay with low voltage protection
Internal U-blox M9N GNSS
Dual SIM cards for WWAN modules
9~36V wide range DC input
Wide operating temperature -40°C ~ 70°C
Certified with CE/FCC/E13 mark

Datasheet

^{The VTC 1920, a super-slim, rugged, and entry-level vehicle computer powered by an Intel Atom®} processor x7211RE (1.0GHz), is designed for harsh in-vehicle environments. It meets the stringent MIL-STD-810H military standard in a robust, fanless, and compact mechanism. Its super-slim design makes it particularly suitable for vehicles with limited space to accommodate a computer system, yet it doesn't compromise on its features.

VTC 1920 has built-in CAN FD and CAN 2.0B for vehicle diagnostics and driver behavior management. An advanced GNSS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. VTC 1920 is capable of WLAN and WWAN wireless connection. With external 2 x SIM sockets, which can support a better connection quality by software. VTC 1920 maintains the flexibility to meet different demands for telematics applications such as IoT Gateway infotainment, fleet management and distribution system.

Processor	Intel Atom® processor dual core x7211RE, 1.0GHz
Memory	1 x 260-pin DDR4 SO-DIMM socket supports 3200MHz, up to 16GB. Default 4GB
Storage	1 x M.2 Key M 2242 for SATA 3.0 1 x M.2 Key M 2280 for SATA 3.0 (optional on daughter card)
Expansion	1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0), for LTE/5G NR module with 2 external Nano-SIM (on the optional daughter card) 1 x Full-size mini-PCIe socket (USB 2.0), BOM optional M.2 3052 Key B (USB 2.0) for LTE module (on the optional daughter card)
Function	1 x u-blox NEO-M9N onboard (supports GPS/Glonass/QZSS/Galileo/BeiDou) Built-in G-sensor TPM2.0
I/O Interface-Front	1 x Power button with LED 3 x LEDs for WWAN, WLAN, Storage, 1 x Reset button 2 x SIM socket (Nano type) with cover 1 x CAN FD, 1 x CAN 2.0B, 1 x DR, 1 x DB15 connector for analog input (detects 9~36VDC) 1 x Line Out/MIC In 2 x Type A USB 3.2 3 x antenna holes for GNSS/WLAN

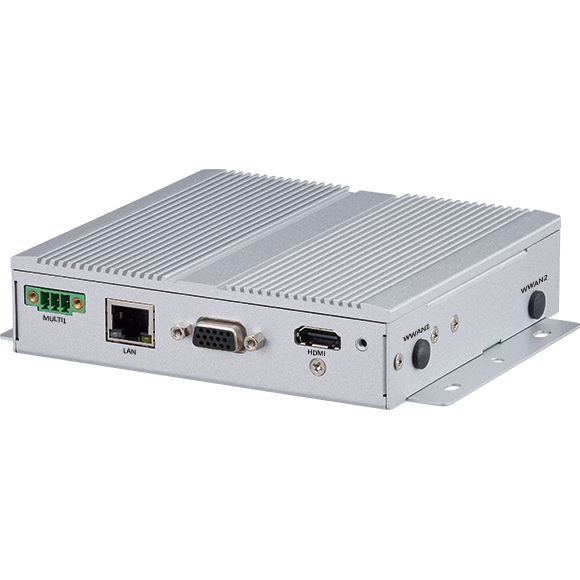

I/O Interface-Rear	1 x Phoenix connector for Power/GND/Ignition input 1 x RJ45 10/100/1000/2500 Mbps Ethernet with LED 1 x HDMI, resolution up to 3840 x 2160 @ 30Hz 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX), 3 x DI, 3 x DO
Operating System	Windows 10, 11 (64 bit) Linux 4.x
Environment	Temperature - Operating temperatures: -40°C~70°C - Storage temperatures: -45°C~85°C - Damp heat test according to EN60068-2-30 Humidity - IEC60068-2-78, Damp heat steady state test, 40C, 95%, 48Hr Vibration - IEC 60068-2-64, 2G - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4 - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24 Shock - MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Dimensions	130 mm (W) x 120 mm (D) x 32 mm (H) (5.12” x 4.72” x 1.26”) Weight: 0.6 kg (1.3 lbs)
Certificates	CE approval FCC Class A E13 mark
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/ S4 suspend mode
